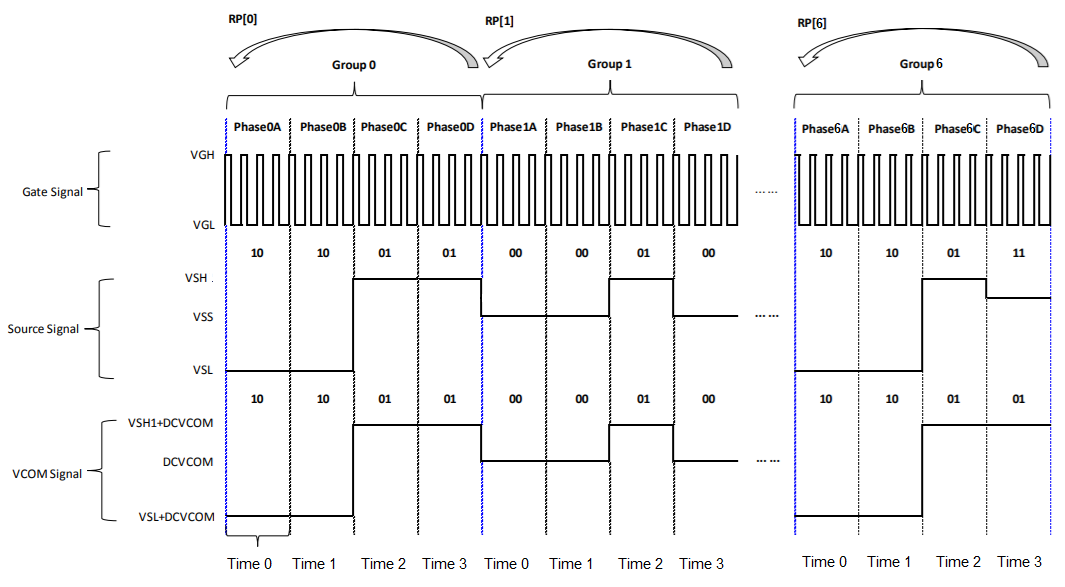

LUT
Nr:
VCOM
LUT
Nr:
(R21H) (R22H) (R23H) (R24H)
Zoom :
Draw result
BLACK is HIGH
Your browser does not support the HTML5 canvas tag.
Generate VCOM LUT
// need 45
const unsigned char VCOM_LUT_R20H [44] = {
0x00, 0x08, 0x00, 0x00, 0x00, 0x02, 0x60, 0x28, 0x28, 0x00, 0x00, 0x01, 0x00, 0x14, 0x00, 0x00, 0x00, 0x01, 0x00, 0x12, 0x12, 0x00, 0x00, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
Parse VCOM LUT
Generate LUT
// need 43
const unsigned char VCOM_LUT_R20H [42] = {
0x40, 0x17, 0x00, 0x00, 0x00, 0x02, 0x90, 0x0F, 0x0F, 0x00, 0x00, 0x01, 0x40, 0x0A, 0x00, 0x00, 0x00, 0x02, 0xA0, 0x0E, 0x0E, 0x00, 0x00, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
Parse LUT
SPECIFICATION IL0373 (
IL0373990b
)
